Description

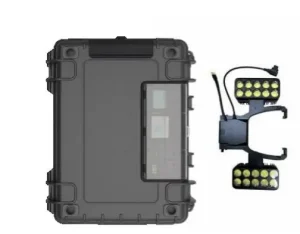

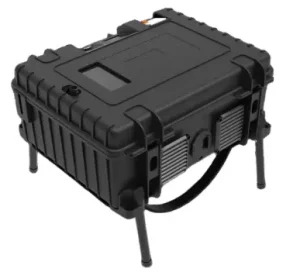

The TE4 Power Supply System is a backpack-mounted system for the M4. The tether box features foldable landing legs, which help avoid contact with harsh ground environments when deployed, thus protecting the tether box. The enclosure adopts a backpack-style design, made with eco-friendly materials. The area in contact with the human back is ergonomically designed for comfort and durability, making it suitable for long-distance single-operator carrying.
While ensuring high integration and portability, the 55-meter cable’s automatic retraction and release function allows the tether system to be deployed and retrieved quickly, reducing impact and bending of the cable—an effective measure to protect it.
The built-in energy storage unit enables extended continuous operation even without access to mains electricity.
Technical Specifications
| Specification | Details |
|---|---|
| Onboard Module Dimensions | 100mm×80mm×40mm |
| Onboard Module Weight | ≤120g |
| Onboard Power | ≥400W (For UAV) |
| Tether Box Weight | ≤15.5KG (with battery) |
| ≤9KG (without battery) | |
| Tether Box Rated Power | 1KW |
| Output Power | 400W |
| Operating Temperature | -20℃ to +50℃ |
| Ground Power Box Dimensions | ≤350mm×270mm×190mm |
| Cable Length | ≥55 meters |
| Electrical Specifications of the Ground Power Supply Box |
Provides 1500W power supply for the drone. Offers one USB QC 18W charging port. Provides one 4-port PD 100W TYPE-C power output for peripheral device charging. The main power switch has an independent on/off control. An optional audio-visual alarm module is available. |
| Protection and Transportation Features |
The tether box is equipped with a waterproof base to avoid contact with harsh ground environments when deployed. The enclosure is designed for both hand-carry and backpack transport. The backpack system is ergonomically designed to fit the human back, providing comfort and durability, suitable for long-distance single-person carrying. |
| Dedicated APP Software |
Provides APP control software that can be installed on Android remote controllers or smartphones. The startup screen can be customized. The APP offers control over the tethered power supply system and can acquire parameters such as voltage, current, cable length, and power. |
