KJ-01 Airport 3 UAV Emergency Automatic Delivery System

$12,000.00

KJ-01 is a remote automatic loading/unloading delivery device compatible with DJI Airport 3. It replaces manual loading to complete unmanned airport application scenarios, and leverages frontline-deployed airports for rapid emergency response. The device enables UAVs to carry rescue supplies or emergency goods and reach the scene promptly, with core functions of automatic loading/unloading and emergency delivery/supply transportation.

Description

Product Introduction

KJ-01 is a remote automatic loading and unloading delivery device adapted to DJI Airport 3, which solves the problem that manual installation of items needs to be carried out manually in the past,                         and the unmanned airport scene cannot be fully filled

The product takes advantage of the airport deployment in the front-line operation site, so that in case of emergency, the UAV can take off and arrive at the scene with rescue items in the first time

Throwing aid, or transporting emergency supplies

Autoload

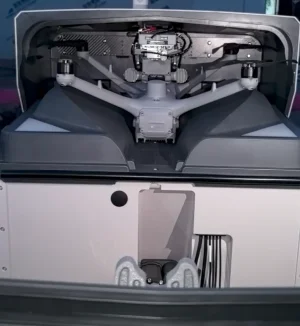

The   loading   and   unloading   module   is installed   in   the   three   compartments   of  the    Jiangsu   Airport.   The   delivery   box   containing  items  is  usually  stored   on  the   cabin   cover .   In   case   of  emergency,  the   items   can   be   remotely   controlled   from   Sikong   2   or  the  third-party  platform  to  carry out flight tasks.

Emergency casting

  1. In the water scene, when  someone  falls into the water, it can reach the person above in the shortest time and throw out the automatic inflatable life ring.
  2. When someone gets lost in a mountainous or uninhabited area, throw an emergency life kit or smoke beacon.
  3. When someone is bitten by a snake, scorpion or other poisonous insect in the wild, he       throws out a venom suction device.
  4. The product also supports optional air delivery boxes, which can be customized to throw or transport  materials  according  to  business  needs,  such  as  throwing  walkie-talkies  and  satellite phones.

Movement of goods

Supports  the  transportation   of  customized  items  such  as documents, blood  and  quara-  ntine    samples.    Through   the    frog   jump  function of DJI Airport, items can be loaded  at A place and automatically unloaded after  being transported to B place.







Product Parameter

Category Feature Specs
Installation/uninstallation device Supported platform DJI DOCK3
Installation location In the rear of dock cover
Installation/uninstallation time < 5s
Working temperature -20°C~50°C
IP level IP55
Installation/uninstallation capability Drop box
Power supply Dock 3
Drop box Max payload weight ≤500g
Dimensions 89.8mm*157.8mm*115.2mm (0.56L)
Supported payload Supported payload:lifebuoy,emergency kit,smoke mark,empty box,Venom Extractor or others
Installation/uninstallation mode Remote
On-board communication Weight < 35g
IP level IP55
Communication link DJI transmission link based on PSDK
Software Remote control DJI flighthub2 or 3rd party platform based on DJI API or PSDK
API Supported 3rd party development based on DJI API
Reset Support reset on mission fails
Floating window Support mission status on DJI flighthub2 or 3rd party platform based on DJI API
